Our factory produces a series of landscaping and sanitation sprinkler trucks, which have multiple functions for landscaping and sanitation. They are mainly used for road washing in large, medium and small cities, watering trees, green belts, lawns, and other green areas, construction sites, factories, mines, high-altitude building washing, dust suppression, high and low-position spraying, pesticide spraying, guardrail cleaning, water transportation, drainage, and emergency fire-fighting functions.
Our factory has fully passed the ISO9001-2000 international quality system certification, and all products have passed the 3C certification. We are a well-known brand in Hubei Province, a trusted product, and ranked among the top 500 private enterprises nationwide. After-sales service has a 5A level certification.

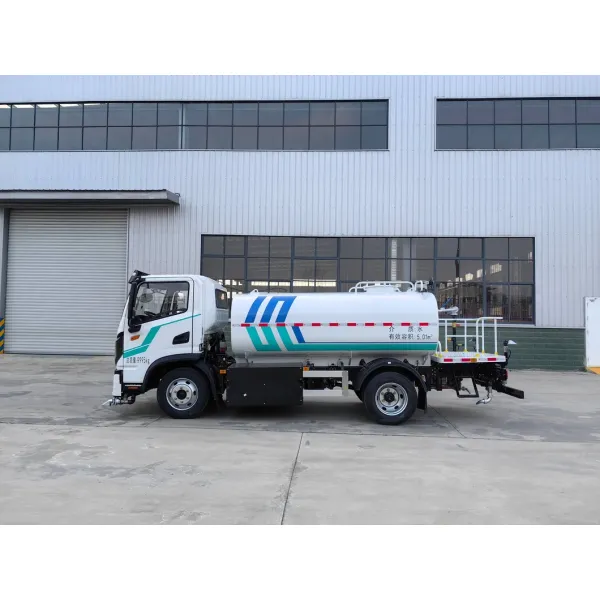

Main Technical Specifications:
| Project |
Parameters |
| Product Name |
CL5100GSSBEV-type Greening Sprinkler Truck |
| Chassis Model |
CL1100JBEV |
| Volume |
Volume: 5 cubic |
| (Tank dimensions:6730×2250×2400,2750)mm |
| Total mass |
9995kg |
| Curb weight |
4790kg |
| Rated load capacity |
5010kg |
| Vehicle length, width, and height |
6730×2250×2400,2750mm |
| Wheelbase |
3360mm |
| Special performance of water sprinkler trucks |

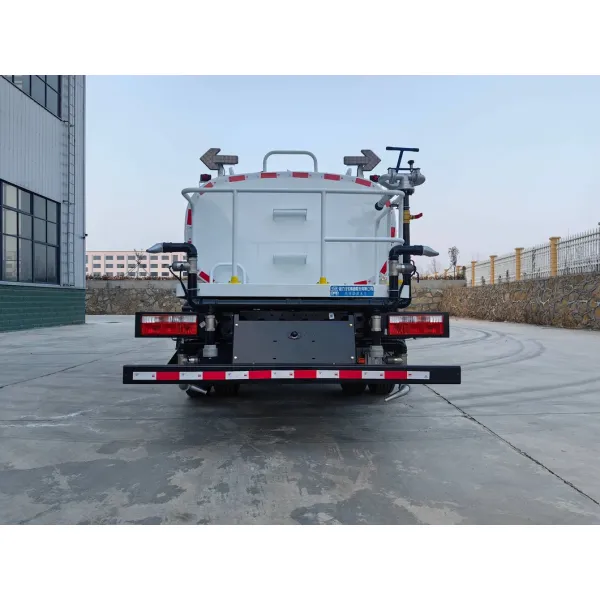

Front flush (spray) rear spray, with side spray, with rear working platform, the platform installed on the greening sprinkler high-pressure gun (gun spraying shape adjustable: straight spray status, heavy rain, medium rain, drizzle, can continuously adjust, maximum range up to 30 meters), equipped with high-power dedicated sprinkler pump, with fire hose connection, with self-flow valve, with self-suction function, with filter screen. Suction range ≥ 6 meters, watering width ≥ 16 meters, range ≥ 30 meters. |
| Top mounting tank body and accessories |
Material: The tank body is made of Q235 steel, with a baffle thickness of 3mm, a carbon steel thickness of 4mm on the tank body, and a head thickness of 5mm. Large-diameter straight-through ball valves, aluminum alloy three-way valves, thickened main pipes (76). Cast aluminum pipe fittings: aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet four-way, aluminum alloy pump inlet straight-through, die-casting formed at one time, seamless, avoiding water leakage, standardized design, good interchangeability, convenient for maintenance and replacement, lightweight and practical aluminum alloy material, beautiful and improving product grade. Other accessories: aluminum alloy rear sprinkler, stainless steel ball valve, S-type new high-pressure water cannon.
The perforated plate platform: Thickened perforated plate, better anti-slip performance, no water accumulation on the platform, optimized structure, pressed into shape. |
FAQ
Q1: Are you manufacturer or trading company?
A: We are direct manufacturer with more than 8 years' experience.
Q2: What is the lead time?
A: Normally it will take 20-45 working days after getting down payment.
Q3: How should I pay for you if I place order to you?
A: We prefer T/T, 30%-50% as deposit, balance before shipment, L/C is also acceptable and negotiable.
Q4: If I do not like the color, could I change the color?
A: Yes, most of our trucks have standard colors, if all colors could not meet your needs; we could customize by your request.
Q5: Can you supply the spare parts of this truck?
A: Yes, We can supply the spare parts for all the trucks we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
Q6: Do you have oversea service?
A: When you have some problems which you cannot solve, we will arrange our engineers to your country to help you.
Q7: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
