Product Description
A high-altitude work vehicle is a specialized vehicle that lifts workers, tools, materials, etc. to a designated location at high altitude through a work platform for various installation, maintenance, cleaning, logging, and other operations. The following provides a detailed introduction to it from multiple aspects
Product Parameters
| Chassis parameters: |
|
| batholith |
isuzu |
| Chassis model |
QL1073 BUHACY |
| pilothouse |
Isuzu KV100 |
| Drive form |
4*2 |
| wheel base |
3360mm |
| engine type |
4KH1CN6LB |
| Engine horsepower |
Isuzu has 120 horsepower |
| engine power |
88 Kw |
| displacement |
2499 ml |
| effluent standard |
Six countries |
| gear-box |
Isuzu MSB 5-gear transmission |
| tyre |
The 700R16 tires |
| Front / rear of the car bridge |
3T/4T |
| car beam |
700MM |
| air-conditioning |
have |
| Direction to help |
have |
| Broken gas brake |
have |
| Multi-functional dashboard |
have |
| Modified configuration |
|
| gross mass |
6680Kg |
| curb weight |
6500Kg |
| Chassis weight |
2300Kg |
| Upper weight |
4200Kg |
| outline dimension |
5998*2100*3100mm |
| Rated load of the working platform |
200Kg |
| Maximum operation height |
30M |
| Maximum operation range |
14M |
| On the operation |
Install the cab |
| Leg span: in the transverse / longitudinal direction |
5400/4560mm |
| Number of raised arms |
6-section wire rope chain type expansion structure |
| revolving stage |
360° continuous rotation |
| Lift the height |
30 M |
| operating system |
CAN wireless remote control / manual emergency operation |
| High-strength stainless steel platform load |
Dimensions: 1600 X700X1000mm / 200 Kg |
| The highest speed |
100Km/h |
| hydraulic leg |
Front V type V 4 / root |
| Manual emergency pump |
When the engine and main pump fail, the staff can be sent back to the ground and the vehicle back to the driving state through the emergency system |
| Get on and off automatic interlocking device |
To interlock on and off the car to prevent misoperation |
| Night safety warning device |
On the vehicle there are engineering strobe lights, LED lights |
| Operation display |
A 5-inch LCD screen |

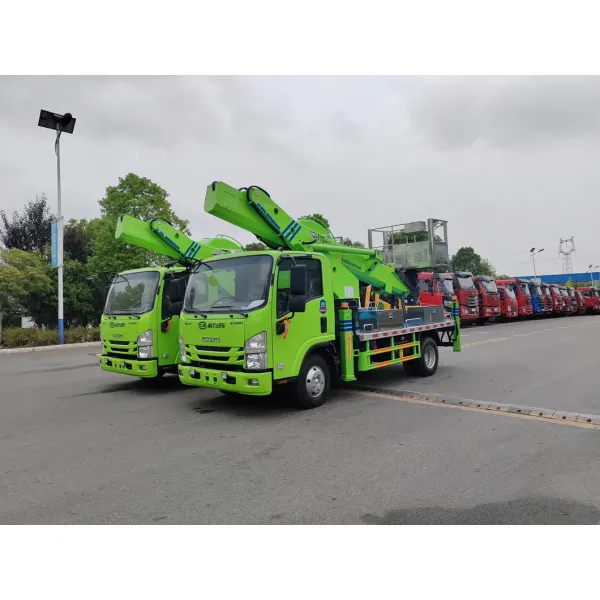

![The Factory Price Sells Isuzu 18m, 22m, 24m, 30m and 32m Aerial Work Platform Truck Insulated Arm Hydraulic Telescopic Aerial Work Truck.]()
Certifications
Chengli Special Purpose Vehicle Co., Ltd. is located in the southern suburbs of Zengdu District, Suizhou City, Hubei Province. It was established in September 2004 with a registered capital of 100 million yuan. The company currently has total assets of 1.645 billion yuan, covers an area of 610 acres, and has 1786 employees. Its main business scope includes technology research and development, manufacturing, sales, and services of complete vehicles, special purpose vehicles, new energy vehicles, and emergency support vehicles.
The company has successively passed ISO9001 quality management, ISO 14001 environmental management, ISO45001 occupational health and safety management system certification, after-sales service five-star, 3C mandatory certification, automotive energy conservation and environmental protection certification, automotive exemption certification, American mechanical engineer ASME certification, European Union agreement ADR and other management certifications. It has production qualifications for special vehicles, whole vehicles, new energy vehicles, on-board cranes, car cranes, fire trucks, etc.
The company's "Cheng Liwei" trademark products are popular in domestic and international markets, and have been exported to more than 50 countries and regions including Nigeria, Ghana, Angola, Bolivia, Chile, Cambodia, Myanmar, etc.
Our Advantages
After more than 20 years of leapfrog development, Chengli Special Purpose Vehicle Co., Ltd. now covers an area of over 3000 acres, with a construction area of 1.2 million square meters and more than 5000 sets of various large-scale production equipment. It has 16 subsidiaries, over 40 member factories, and more than 100 professional factories. It has four major production bases in the southern suburbs of Zengdu District, Zengdu Economic Development Zone, Huangpi District of Wuhan City, and Dongjin New District of Xiangyang City. The company can produce 50000 sets of automotive chassis, 100000 sets of special purpose vehicles, 10000 sets of new energy vehicles, and 20000 sets of emergency equipment annually.
The company has obtained national industrial product production license, ISO 9001 quality management, ISO 14001 environmental management, ISO 45001 occupational health and safety management system certification, after-sales service certification, 3C mandatory certification, automobile energy conservation and environmental protection certification, and automobile exemption certification. We have production qualifications for specialized vehicles, on-board cranes, truck cranes, fire trucks, new energy vehicles, complete vehicles, and buses.
Hot selling car models
FAQ
FAQ
1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.
2. Q: How many years of your company's service, especially after-sale service?
A:Chengli Special Purpose Vehicle Co., Ltd. (referred to as "Chengli Special Purpose Vehicle") is a wholly-owned subsidiary of Chengli Automobile Group Co., Ltd. We have been working in this field for nearly 20 years and have strong production and distribution capabilities. We can produce your products within 15 working days. We provide one-year after-sales service.
?
3. Q: Is there any advantages of your price?
A: CLW Group is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.
4. Price term: FOB, CIF.
5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
6. Delivery time: 25 working days after payment is received.
