The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.
Detailed Photos
| Specification Parameter |
| Overall size |
5995X2150X3300mm |
| GVW |
7300kg |
| Curb Weight |
7100kg |
| Maximum homework height |
33m |
| Stainless steel work platform |
1600x700x1000mm |
| Work platform load capacity |
200kg |
| Leg span: horizontal/vertical |
5400/4560mm |
| operating system |
CAN wireless remote control/manual operation |
| Chassis model |
ISUZU |
| model |
QL1073BUHACY |
| Engine output |
130HP |
| Maximum output power |
96Kw |
| cab |
KV100 |
| Number of passengers |
3 |
| Drive mode |
4X2 |
| Wheelbase |
3360mm |
| Front / Rear Axle Load |
2580/4720kg |
| transmission case |
Isuzu MSB5 |
Company Profile
Chengli Special Purpose Vehicle Co., Ltd. is located in the southern suburbs of Zengdu District, Suizhou City, Hubei Province. It was established in September 2004 with a registered capital of 100 million yuan. The company currently has total assets of 1.645 billion yuan, covers an area of 610 acres, and has 1786 employees. Its main business scope includes technology research and development, manufacturing, sales, and services of complete vehicles, special purpose vehicles, new energy vehicles, and emergency support vehicles.
The company has successively passed ISO9001 quality management, ISO 14001 environmental management, ISO45001 occupational health and safety management system certification, after-sales service five-star, 3C mandatory certification, automotive energy conservation and environmental protection certification, automotive exemption certification, American mechanical engineer ASME certification, European Union agreement ADR and other management certifications. It has production qualifications for special vehicles, whole vehicles, new energy vehicles, on-board cranes, car cranes, fire trucks, etc.
The company's "Cheng Liwei" trademark products sell well in domestic and international markets, and are exported to more than 50 countries and regions including Nigeria, Ghana, Angola, Bolivia, Chile, Cambodia, Myanmar, etc
Our Advantages
After more than 20 years of leapfrog development, Chengli Special Purpose Vehicle Co., Ltd. now covers an area of over 3000 acres, with a construction area of 1.2 million square meters and more than 5000 sets of various large-scale production equipment. It has 16 subsidiaries, over 40 member factories, and more than 100 professional factories. It has four major production bases in the southern suburbs of Zengdu District, Zengdu Economic Development Zone, Huangpi District of Wuhan City, and Dongjin New District of Xiangyang City. The company can produce 50000 sets of automotive chassis, 100000 sets of special purpose vehicles, 10000 sets of new energy vehicles, and 20000 sets of emergency equipment annually.
The company has obtained national industrial product production license, ISO 9001 quality management, ISO 14001 environmental management, ISO 45001 occupational health and safety management system certification, after-sales service certification, 3C mandatory certification, automobile energy conservation and environmental protection certification, and automobile exemption certification. We have production qualifications for specialized vehicles, on-board cranes, truck cranes, fire trucks, new energy vehicles, complete vehicles, and buses.
Hot selling car models
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Packaging & Shipping
FAQ
1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.
2. Q: How many years of your company's service, especially after-sale service?
A:Hubei CLW group and our group has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.
3. Q: Is there any advantages of your price?
A: CLW Group is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.
4. Price term: FOB, CIF.
5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
6. Delivery time: 25 working days after payment is received.

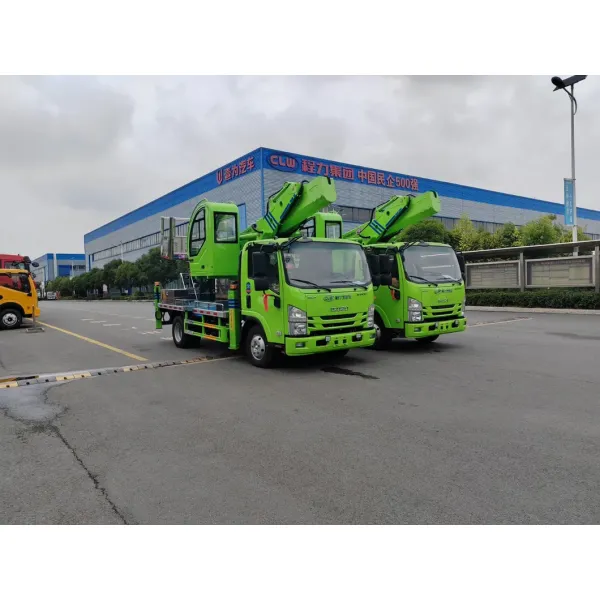

Isuzu double row 43 meter high-altitude work truck
